| Quantity: | |
|---|---|

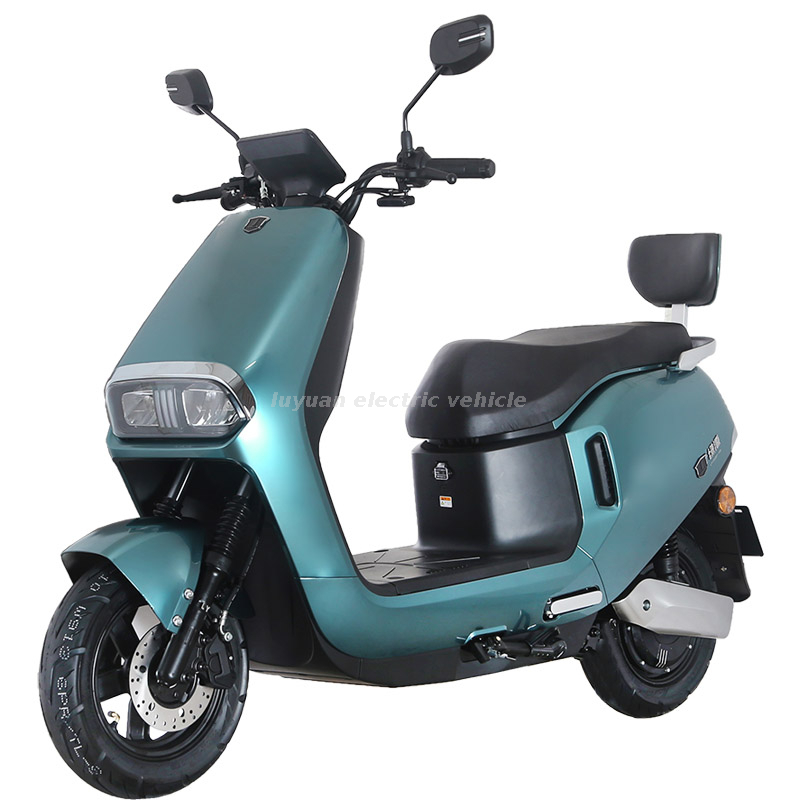

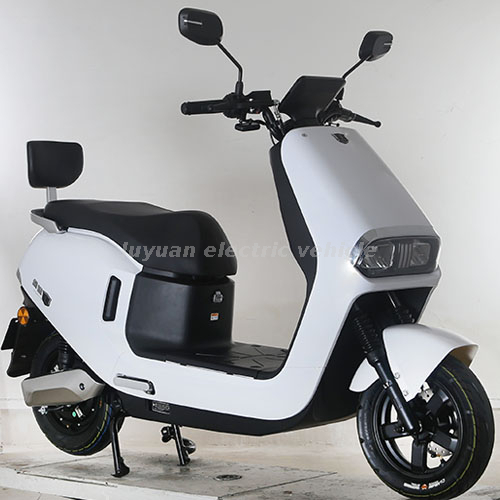

| Model Name | S30 |
| Model Number | M-MHH-7220D-16H-C-6X碟陶钢丝胎 |
| Rated motor power | 72V/550R/1000W 6X Liquid Cooling Motor |
| Battery | 72V20AH Lead Acid Battery |
| Charger | Input AC 90-240V, Output DC 72V3.0A |
| Controller | 72V/38A |
| Max speed | 42km/h |
| Range | 70km （Graphene lead acid 72V23AH 80-85km） |
| Brake(Front/Rear) | Disc brake 180mm/Ceramic drum brake |

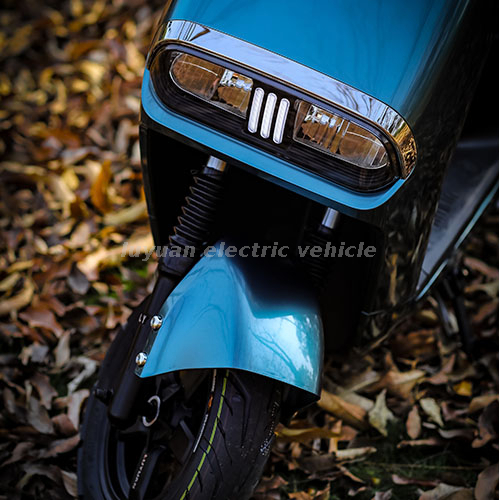

| Light | LED light |
| Display | LCD display board, SOC control core |
| Shock absorber | F:Aluminum cylinder hydraulic R:Spring +Hydraulic |

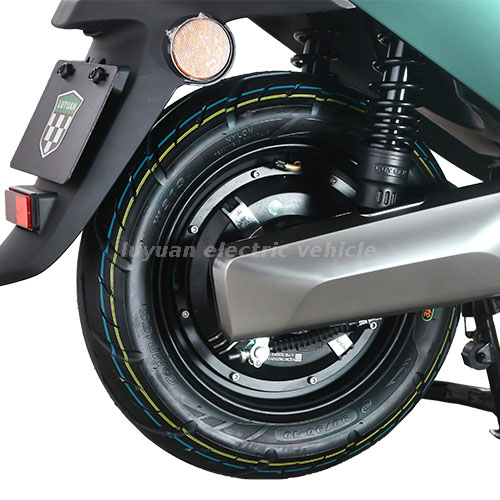

| Wheel size and tire | 90/90-10 E4 tire |
| Anti theft system | Remote controlalarm |
| Climbing ability | 12° |
| Weight（include battery） | 104KG |
| Product dimension | 1800*710*1098mm |
| Packing size | 1800*550*1050mm |
| Loading Qty. | 26pcs/20GP, 56pcs/40HQ，74PCS/40HQ/SKD |
| Model Name | S30 |
| Model Number | M-MHH-7220D-16H-C-6X碟陶钢丝胎 |
| Rated motor power | 72V/550R/1000W 6X Liquid Cooling Motor |
| Battery | 72V20AH Lead Acid Battery |
| Charger | Input AC 90-240V, Output DC 72V3.0A |
| Controller | 72V/38A |
| Max speed | 42km/h |
| Range | 70km （Graphene lead acid 72V23AH 80-85km） |
| Brake(Front/Rear) | Disc brake 180mm/Ceramic drum brake |
| Light | LED light |
| Display | LCD display board, SOC control core |
| Shock absorber | F:Aluminum cylinder hydraulic R:Spring +Hydraulic |
| Wheel size and tire | 90/90-10 E4 tire |
| Anti theft system | Remote controlalarm |
| Climbing ability | 12° |
| Weight（include battery） | 104KG |
| Product dimension | 1800*710*1098mm |
| Packing size | 1800*550*1050mm |
| Loading Qty. | 26pcs/20GP, 56pcs/40HQ，74PCS/40HQ/SKD |
