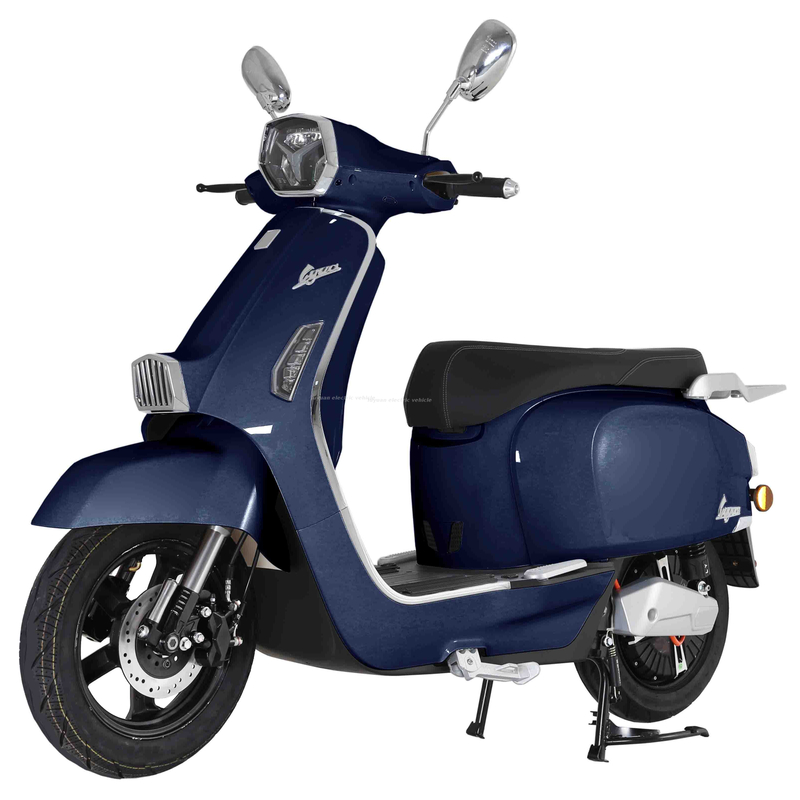

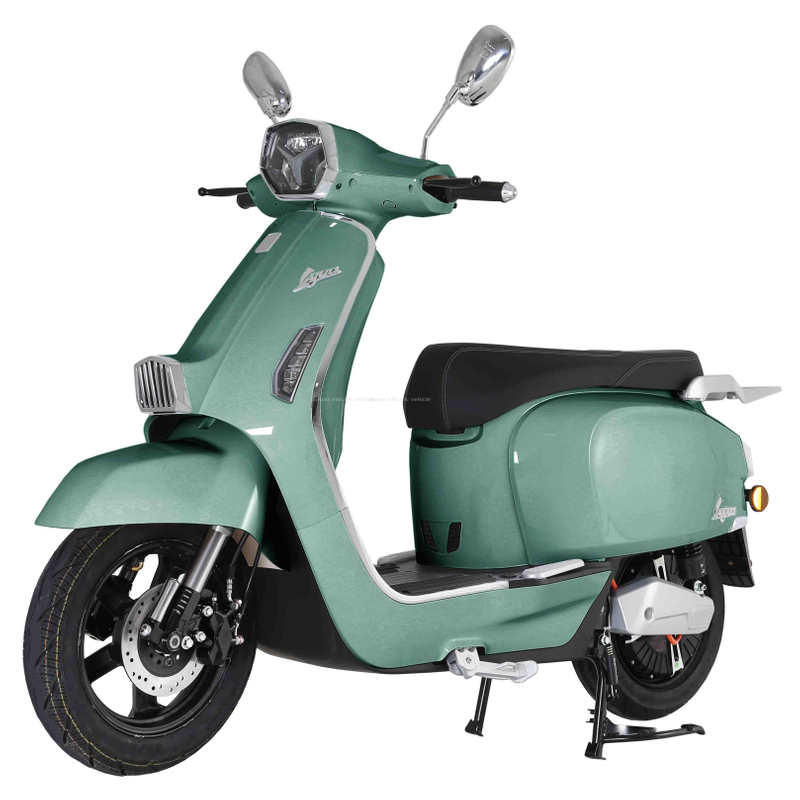

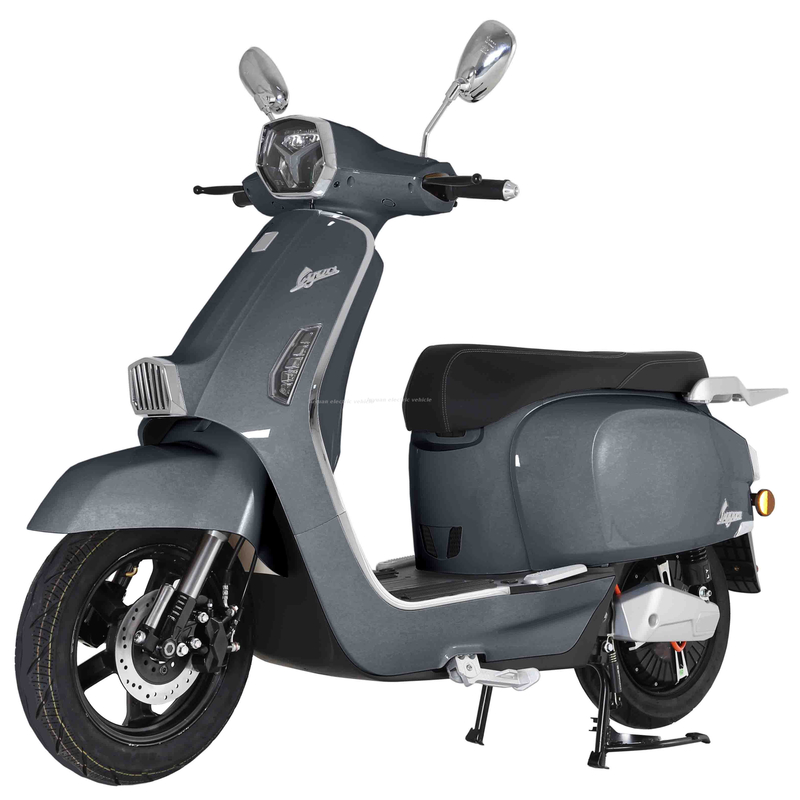

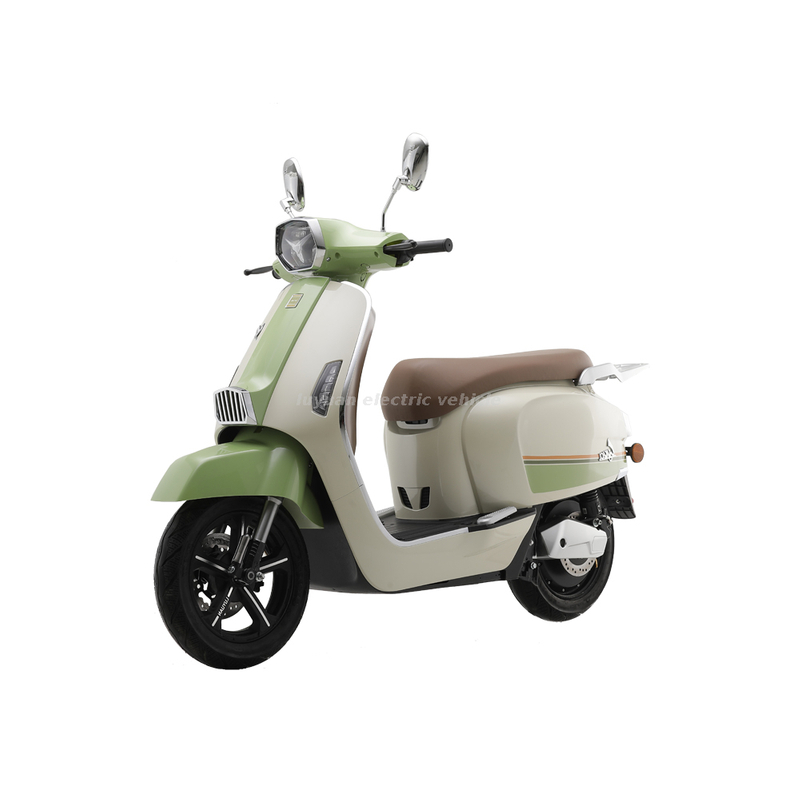

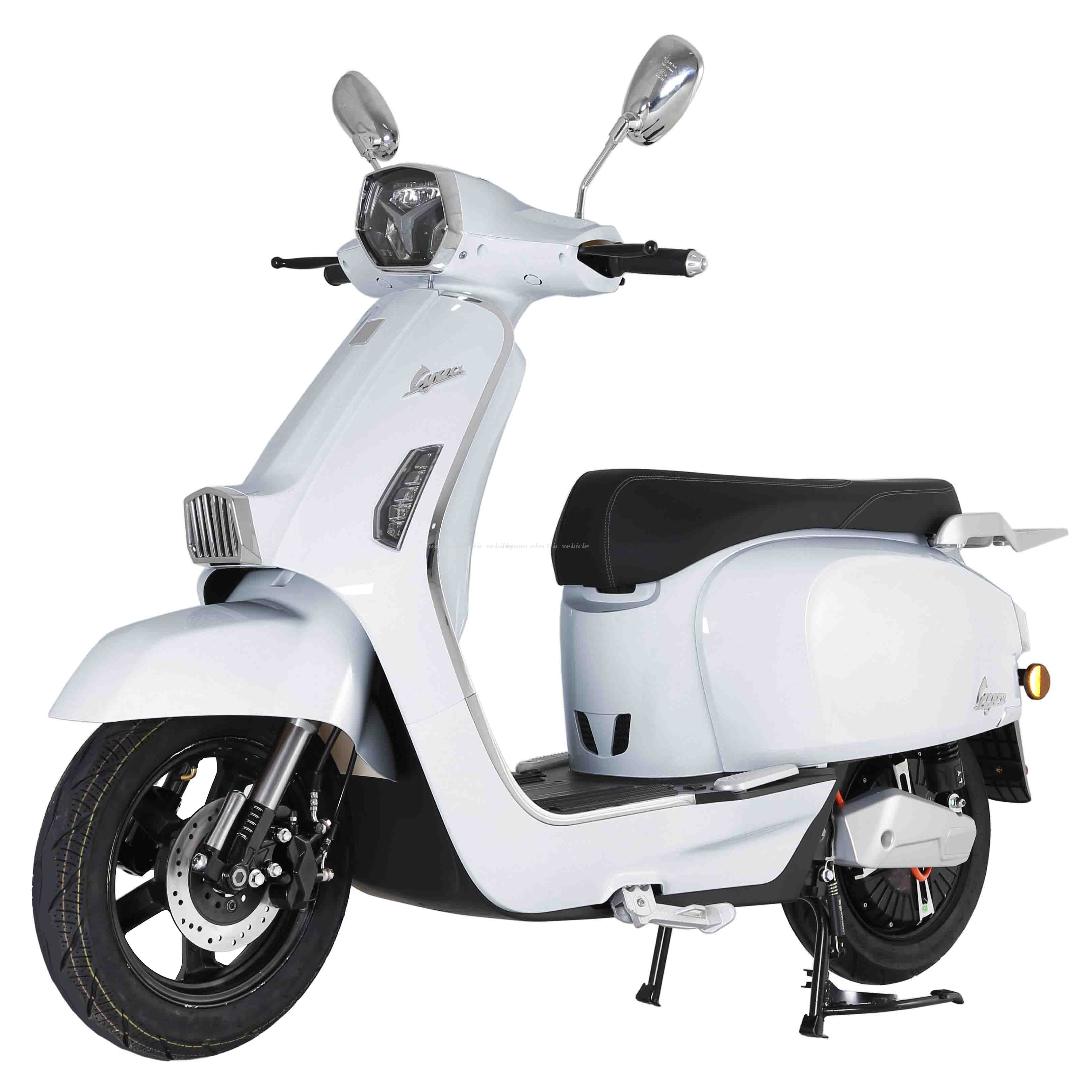

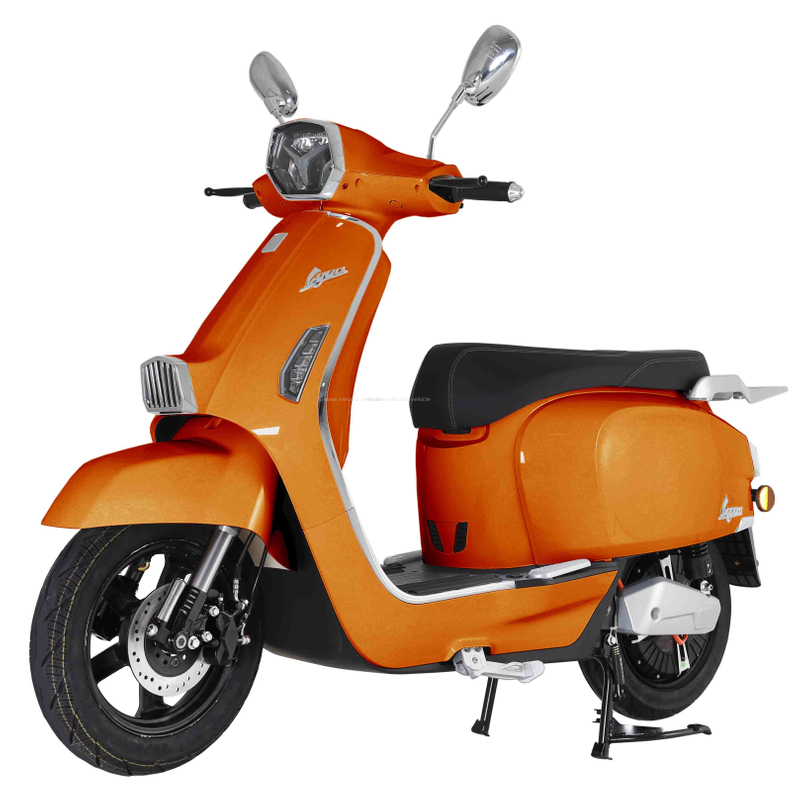

MQN5-T
Luyuan or OEM
| Model Name | MQN5- T (ECO version, one battery) |
| Model Number | 6344100TJ,M-MQN5-Z42LJ-双碟（泰国OAT）20220715 |
| Rated motor power | 72V/850R/3000W 6X Liquid-Cooled Motor |
| Battery | 72V42AH LiFePo4 |
| Charger | Input AC 90-240V, Output DC 72V10.0A |
| Controller | 72V60A |
| Max speed | 75Km/h; (L:45Km/h, M: 60Km/h) |
| Range | 90-100KM(75km/h); 120-130KM(45km/h) |
| Brake(Front/Rear) | F/R 190mm disc brake, CBS (Combined Brake System ) |
| Light | LED light |
| Display | LCD display board, SOC control core |
| Shock absorber | F:Aluminum cylinder hydraulic R:Spring +Hydraulic |
| Wheel size and tire | F: 90/90-12 R: 100/80-12 E4 tire |
| Anti theft system | Remote controlalarm |
| Climbing ability | 15° |
| Weight（include battery） | 110KG |
| Product dimension | |
| Packing size | 1850*550*1050mm |
| Loading Qty. | 26pcs/20GP, 56pcs/40HQ， |
| Model Name | MQN5- T (ECO version, one battery) |
| Model Number | 6344100TJ,M-MQN5-Z42LJ-双碟（泰国OAT）20220715 |
| Rated motor power | 72V/850R/3000W 6X Liquid-Cooled Motor |
| Battery | 72V42AH LiFePo4 |
| Charger | Input AC 90-240V, Output DC 72V10.0A |
| Controller | 72V60A |
| Max speed | 75Km/h; (L:45Km/h, M: 60Km/h) |
| Range | 90-100KM(75km/h); 120-130KM(45km/h) |
| Brake(Front/Rear) | F/R 190mm disc brake, CBS (Combined Brake System ) |
| Light | LED light |
| Display | LCD display board, SOC control core |
| Shock absorber | F:Aluminum cylinder hydraulic R:Spring +Hydraulic |
| Wheel size and tire | F: 90/90-12 R: 100/80-12 E4 tire |
| Anti theft system | Remote controlalarm |
| Climbing ability | 15° |
| Weight（include battery） | 110KG |
| Product dimension | |
| Packing size | 1850*550*1050mm |
| Loading Qty. | 26pcs/20GP, 56pcs/40HQ， |
