| Quantity: | |
|---|---|

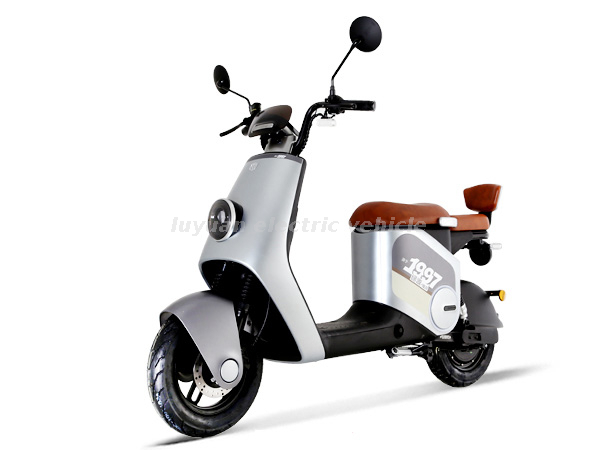

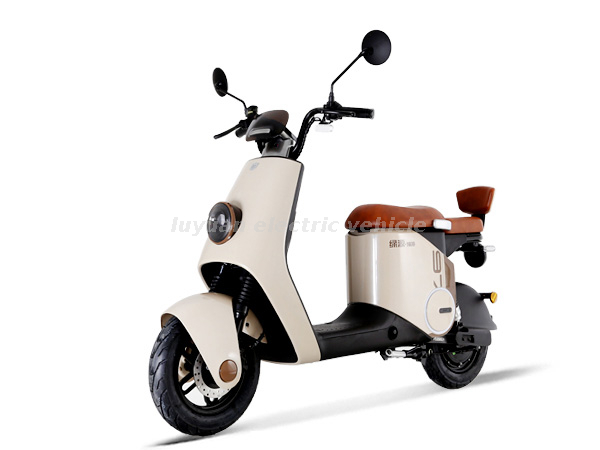

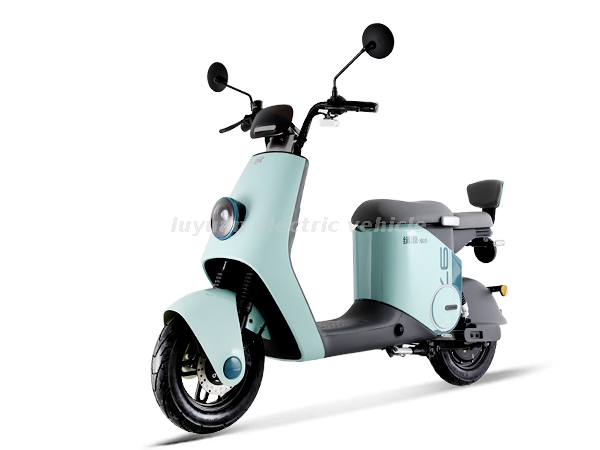

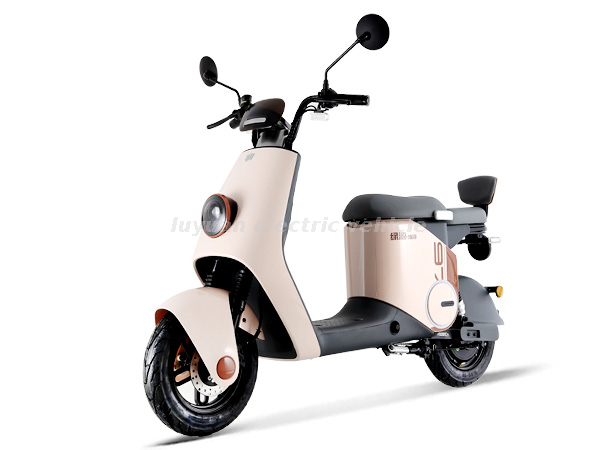

INNO9 Lite
Luyuan or OEM
| Model Name | INNO9 Lite- PB |
| Model Number | D-ZQQ2… |
| Rated motor power | 48V/420R/600W 6X Liquid-Cooled Motor |
| Battery | 48V20AH Lead Acid Battery (Optional CSP 48V23AH) |
| Charger | Input AC 90-240V, Output DC 48V3.0A |
| Controller | 48V30A SOC |
| Max speed | 32km/h |
| Range | 60-70km（CSP 48V23AH 70-85km） |
| Brake(Front/Rear) | F: Disc brake 170mm /R: Ceramic drum brake |
| Light | LED light |
| Display | LED Digital display NFC |
| Shock absorber | F: Aluminum cylinder hydraulic R: Spring +Hydraulic |
| Wheel size and tire | 3.00-10 Radial anti-puncture tire |
| Anti theft system | Remote control alarm |
| Climbing ability | 8° |
| Weight（include battery） | 75 Kg |
| Product dimension | 1690*690*1072mm |
| Packing size | 1800*550*1050mm |
| Loading Qty. | 26pcs/20GP, 56pcs/40HQ，74PCS/40HQ/SKD |
| Model Name | INNO9 Lite- PB |
| Model Number | D-ZQQ2… |
| Rated motor power | 48V/420R/600W 6X Liquid-Cooled Motor |
| Battery | 48V20AH Lead Acid Battery (Optional CSP 48V23AH) |
| Charger | Input AC 90-240V, Output DC 48V3.0A |
| Controller | 48V30A SOC |
| Max speed | 32km/h |
| Range | 60-70km（CSP 48V23AH 70-85km） |
| Brake(Front/Rear) | F: Disc brake 170mm /R: Ceramic drum brake |
| Light | LED light |
| Display | LED Digital display NFC |
| Shock absorber | F: Aluminum cylinder hydraulic R: Spring +Hydraulic |
| Wheel size and tire | 3.00-10 Radial anti-puncture tire |
| Anti theft system | Remote control alarm |
| Climbing ability | 8° |
| Weight（include battery） | 75 Kg |
| Product dimension | 1690*690*1072mm |
| Packing size | 1800*550*1050mm |
| Loading Qty. | 26pcs/20GP, 56pcs/40HQ，74PCS/40HQ/SKD |
