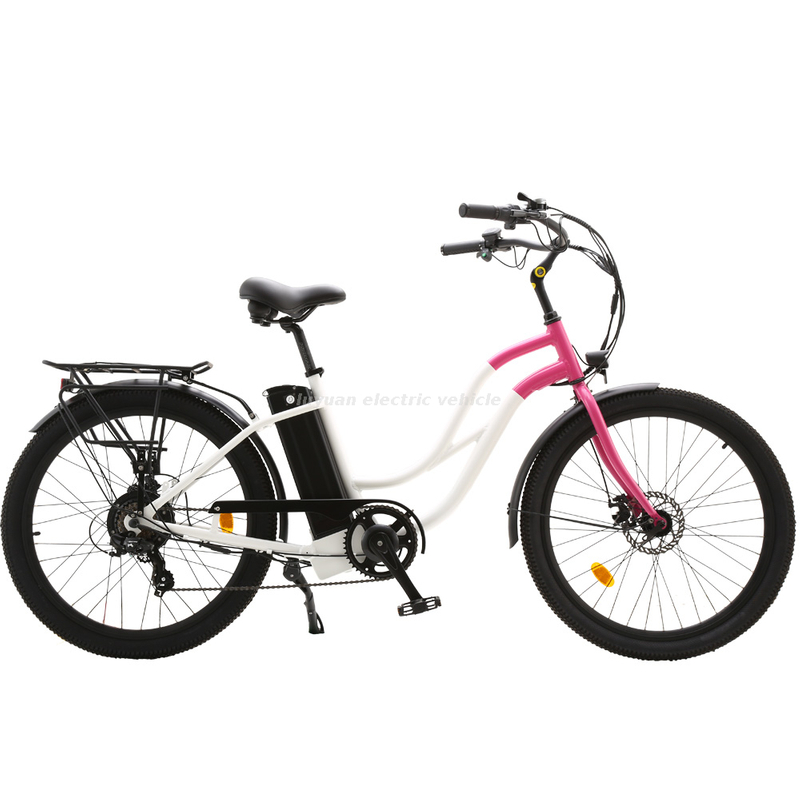

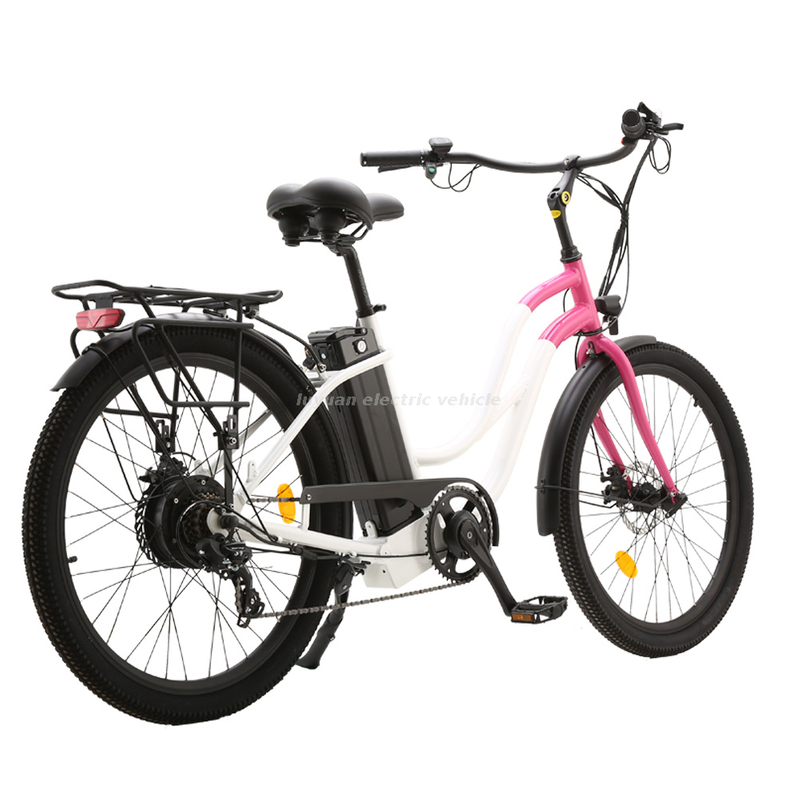

Electric Bicycle EC 01F Lite

Availability:
Quantity:
Inquire Add to Basket

Electric Bicycle EC 01F Lite
Electric Bicycle EC 01F Lite
Electric Bicycle EC 01F Lite
Electric Bicycle EC 01F Lite
Electric Bicycle EC 01F Lite
Electric Bicycle EC 01F Lite

  • EC 01F Lite

  • Luyuan or OEM

Model   NameEC 01F lite
Motor Power36V250W
Controller36V16A
Display BoardLED   Display/3 levels

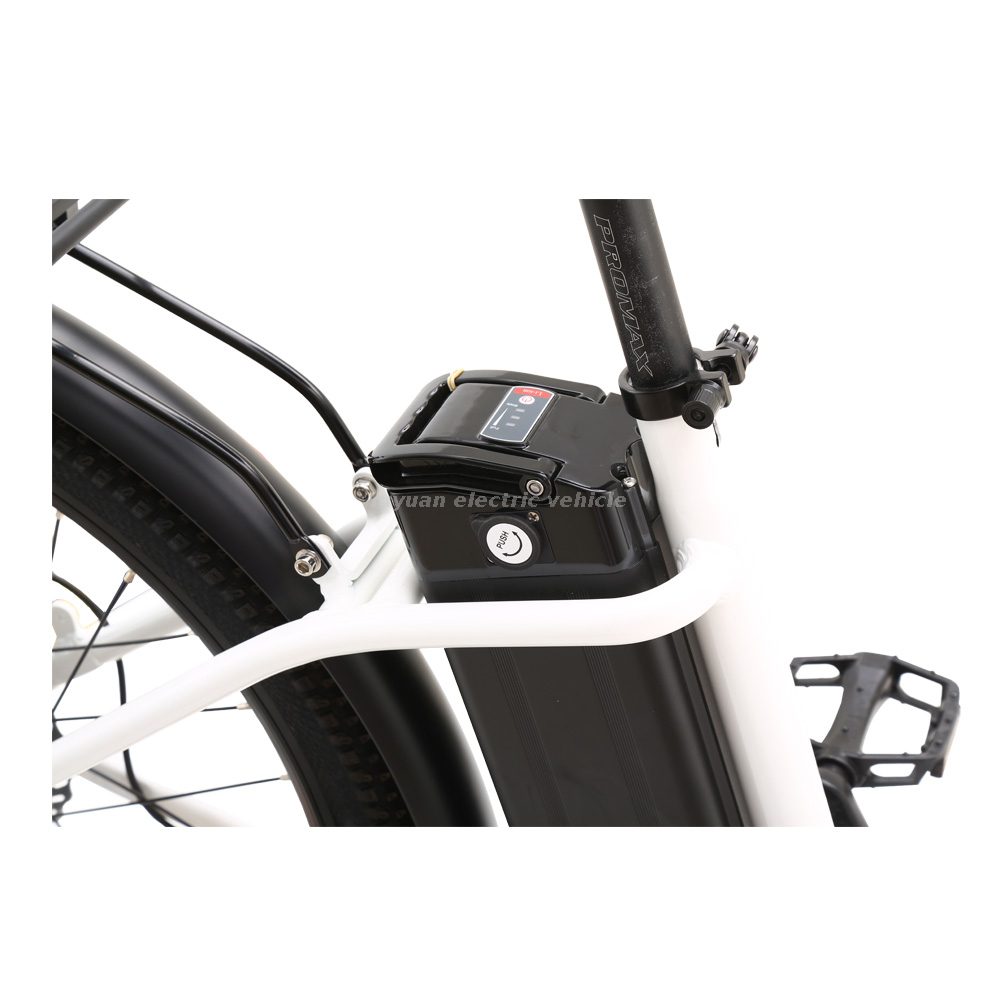

Battery36V10AH
Charger42V2A
ThrottleWUXING   23X246(LH)
PAS SensorSpeed   sensor(left hidden dual Hall sensor)


BrakeTektro   MD-M280

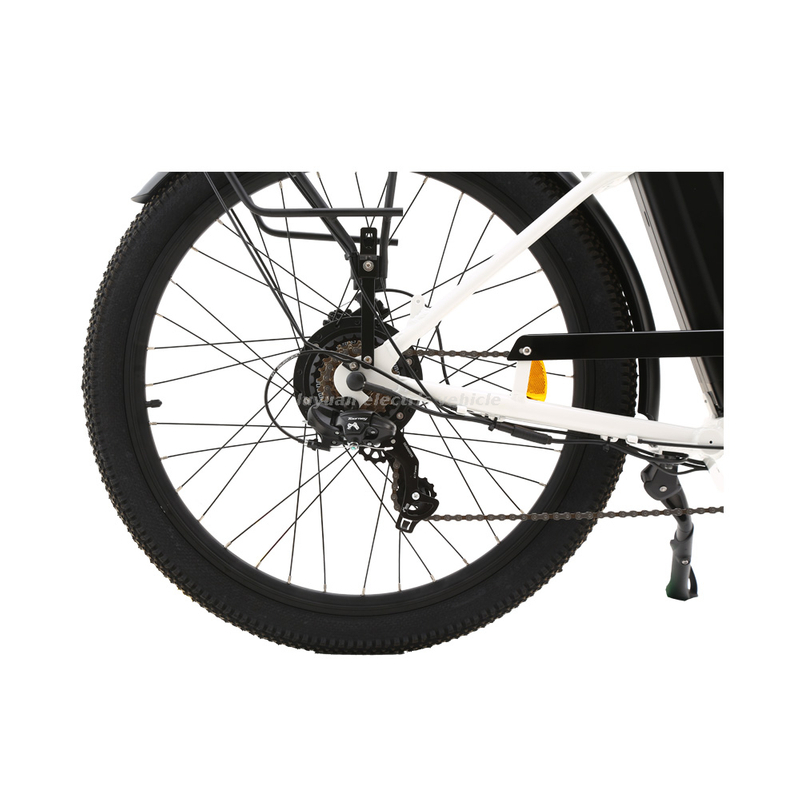

DerailleruShimano   TX50-7/trigger shifter
Fork Suspension/
Wheel/rim sizeSEYOUN   26*2.35
Range/Speed 155-60km/18-20kmph
Range/Speed 230-40km/25kmph
Loading75－100KG


Frame materialAL6061
Body Size1900*720*1120mm
Wheelbase1300mm
Net Weight24-28kg
Battery Weight2.4kgs
Color option
Packing size1560*240*970mm
Container QTY71pcs/160pcs
