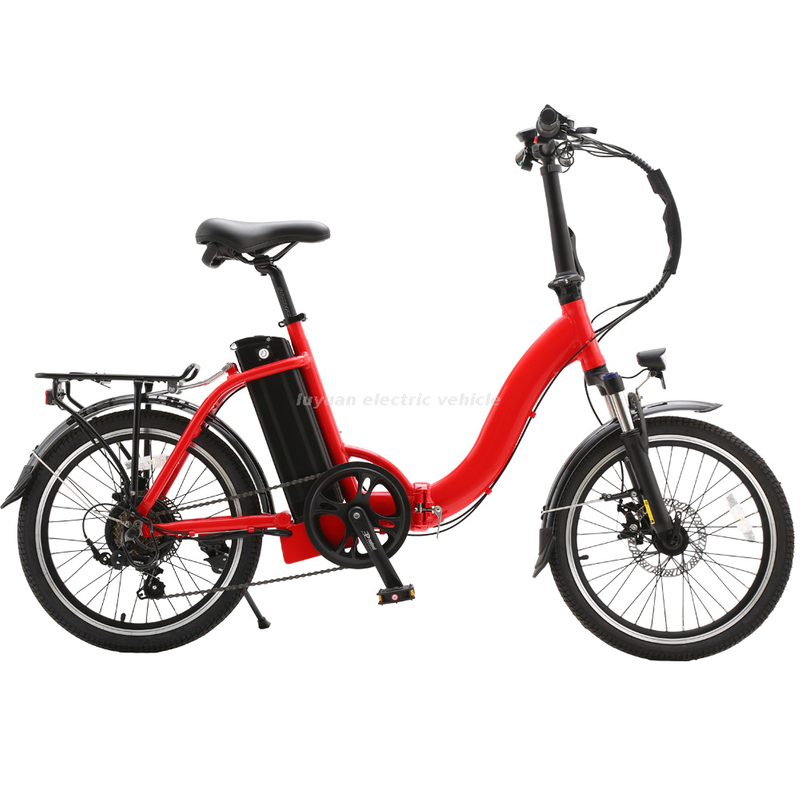

Electric Folding Bicycle FB 01F

250W Electric Folding Bicycle, Foldable Electric Bicycle for woman or girl
Availability:
Quantity:
Inquire Add to Basket

  • FB 01F

  • Luyuan or OEM

Model   NameFB 01F
Motor Power36V250W
Controller36V16A
Display BoardLED   3 Gear
Battery36V10AH
ChargerInput   AC110-220V,Output 42V/2A
ThrottleWUXING   23X246(LH)
PAS SensorSpeed   sensor(left hidden dual Hall sensor)


BrakeTektro   MD-M280
DerailleruShimano   TX50-7/trigger shifter
Fork SuspensionHydraulic   lockout
Wheel/rim sizeSEYOUN   NJK 20*1.75
Range/Speed 155-60km/18-20kmph
Range/Speed 230-40km/25kmph
Loading75-100kgs


Frame materialAL6061
Body Size1600*610*1030mm
Wheelbase1060mm
Net Weight24-28kg
Battery Weight2.4kgs
Color option
Packing size1320*240*620mm
Container QTY140pcs/324pcs
