Electric Vintage Bike EH 02

Availability:
Quantity:
Inquire Add to Basket

  • EH 02

  • Luyuan or OEM

Model   NameEH 02
Motor Power48V500W
Controller48V18A

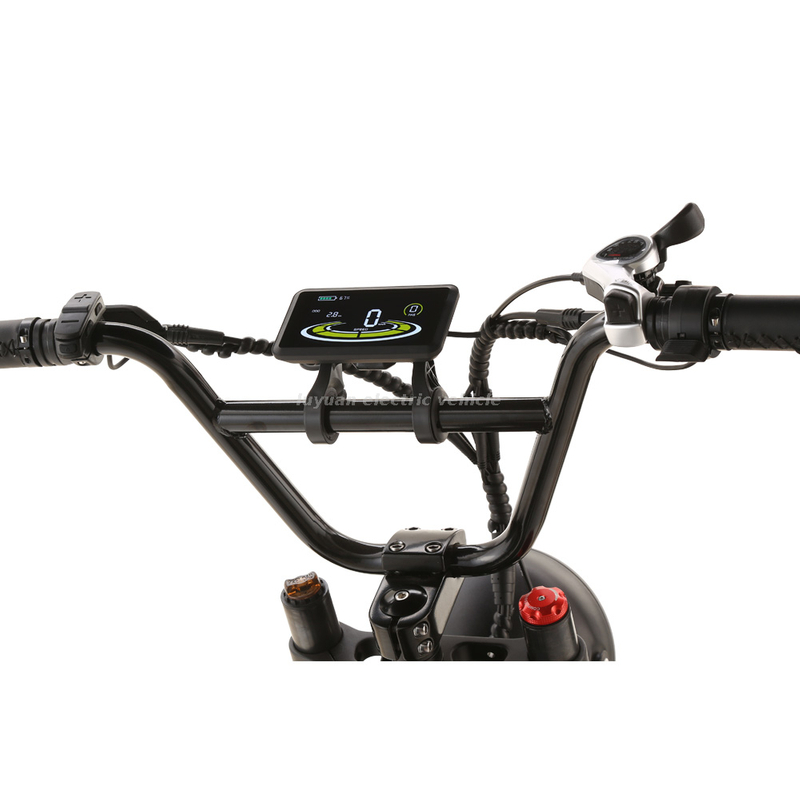

Display BoardLCD   Display/5 levels
Battery48V10AH
Charger54.6V2A
ThrottleWUXING   130X(LH)
PAS SensorSpeed   sensor(left hidden dual Hall sensor)


BrakeXD-E500   Hydralic disc brake (180mm)
DerailleruShimano   TX50-7/trigger shifter
Fork SuspensionHydraulic   lockout
Wheel/rim sizeSEYOUN   K1188 20*4.0"
Range/Speed 165-80km/18-20kmph
Range/Speed 240-50km/25kmph
Loading75－120KG


Frame materialCarbon   steel
Body Size1750*720*1180mm
Wheelbase1160mm
Net Weight26-30kg
Battery Weight3kgs
Color option
Packing size1390*240*700mm
Container QTY112pcs/278pcs
