Electric Bicycle EM 02WD

Availability:
Quantity:
Inquire Add to Basket

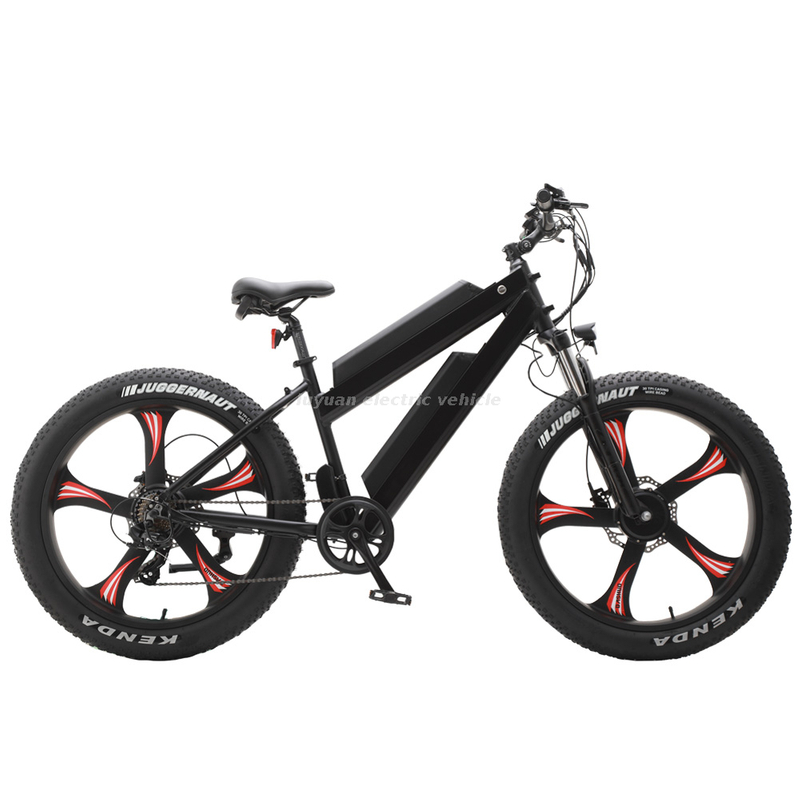

Electric Bicycle EM 02WD
Electric Bicycle EM 02WD
Electric Bicycle EM 02WD
Electric Bicycle EM 02WD
Electric Bicycle EM 02WD
Electric Bicycle EM 02WD

  • EM 02WD

  • Luyuan or OEM

Model   NameEM 02WD

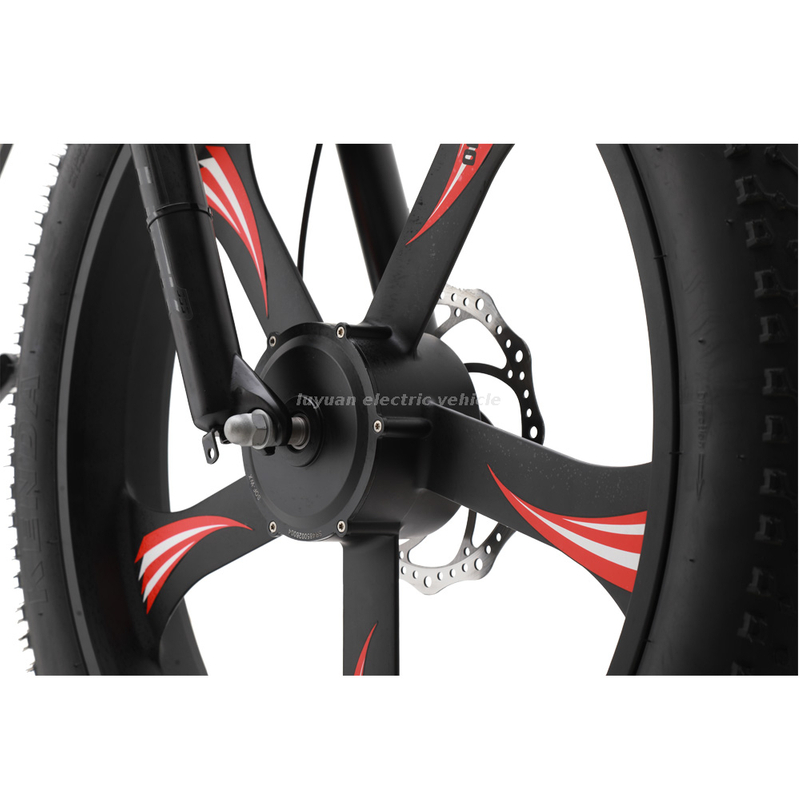

Motor Power48V350W*2
Controller48V18A   sine wave　

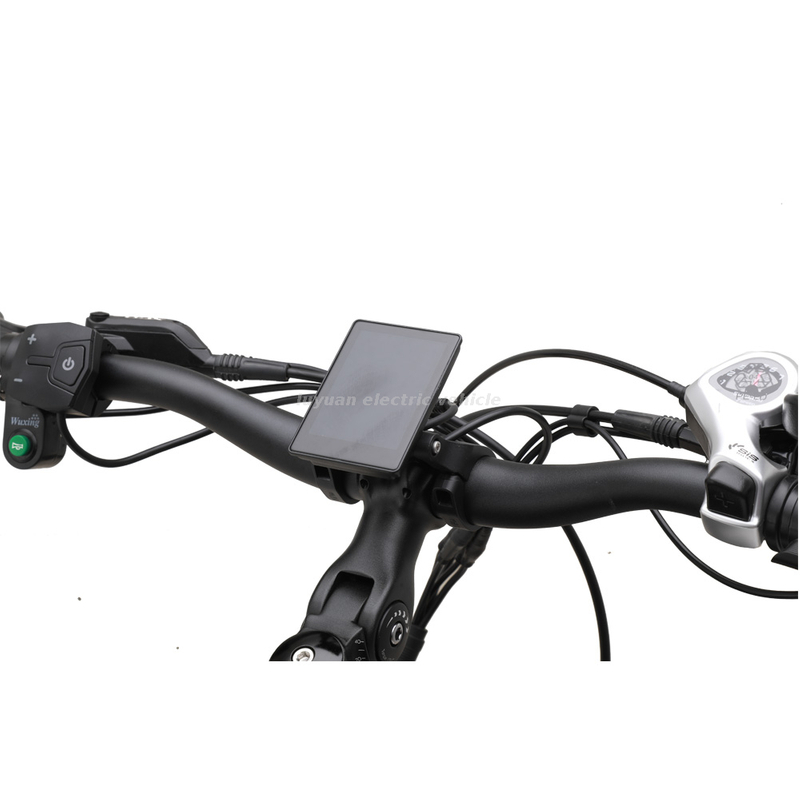

Display BoardK6MS   LCD display/5 level

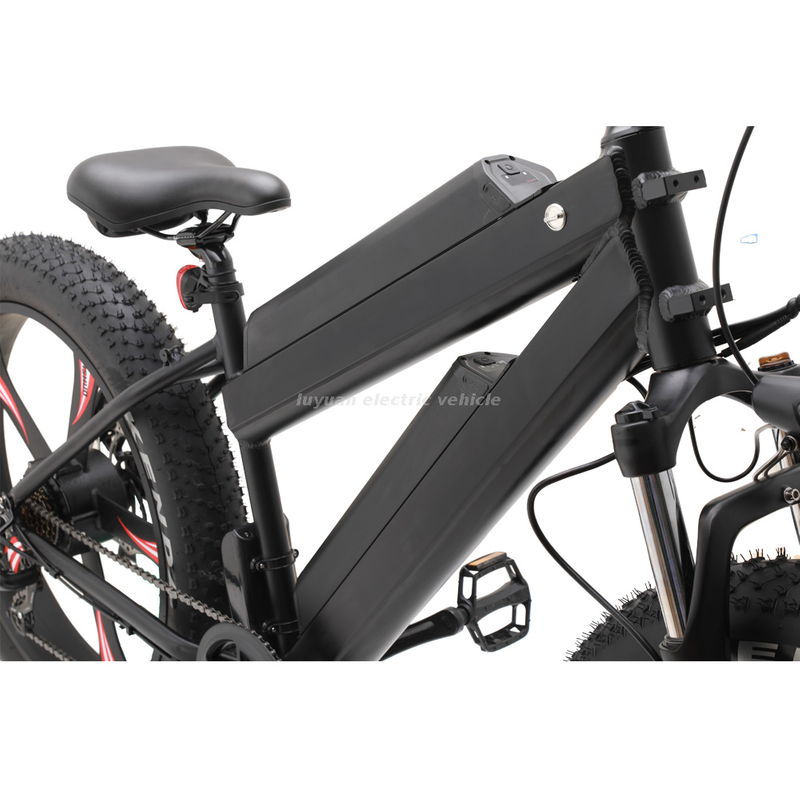

Battery48V10AH*2    (Tesson 2500mah cell)
Charger54.6V   2A (UL certificate)
ThrottleWUXING   130X (LH)
PAS SensorSpeed   sensor(left hidden dual Hall sensor)


BrakeXD-E500   Hydralic disc brake
DerailleruShimano   TX50-7/trigger shifter
Fork SuspensionHydraulic   lockout
Wheel/rim sizeKENDA/K1188  26*4.0"
Range/Speed 1150km/25kmph   by PAS
Range/Speed 290km/25kmph   by throttle
Loading75－100kgs


Frame materialAL6061
Body Size1950*690*1180mm
Wheelbase1230mm
Net Weight24-28kg
Battery Weight6kgs
Color option
Packing size1930*260*1100mm
Container QTY56pcs/168pcs
